XL Slide Axle

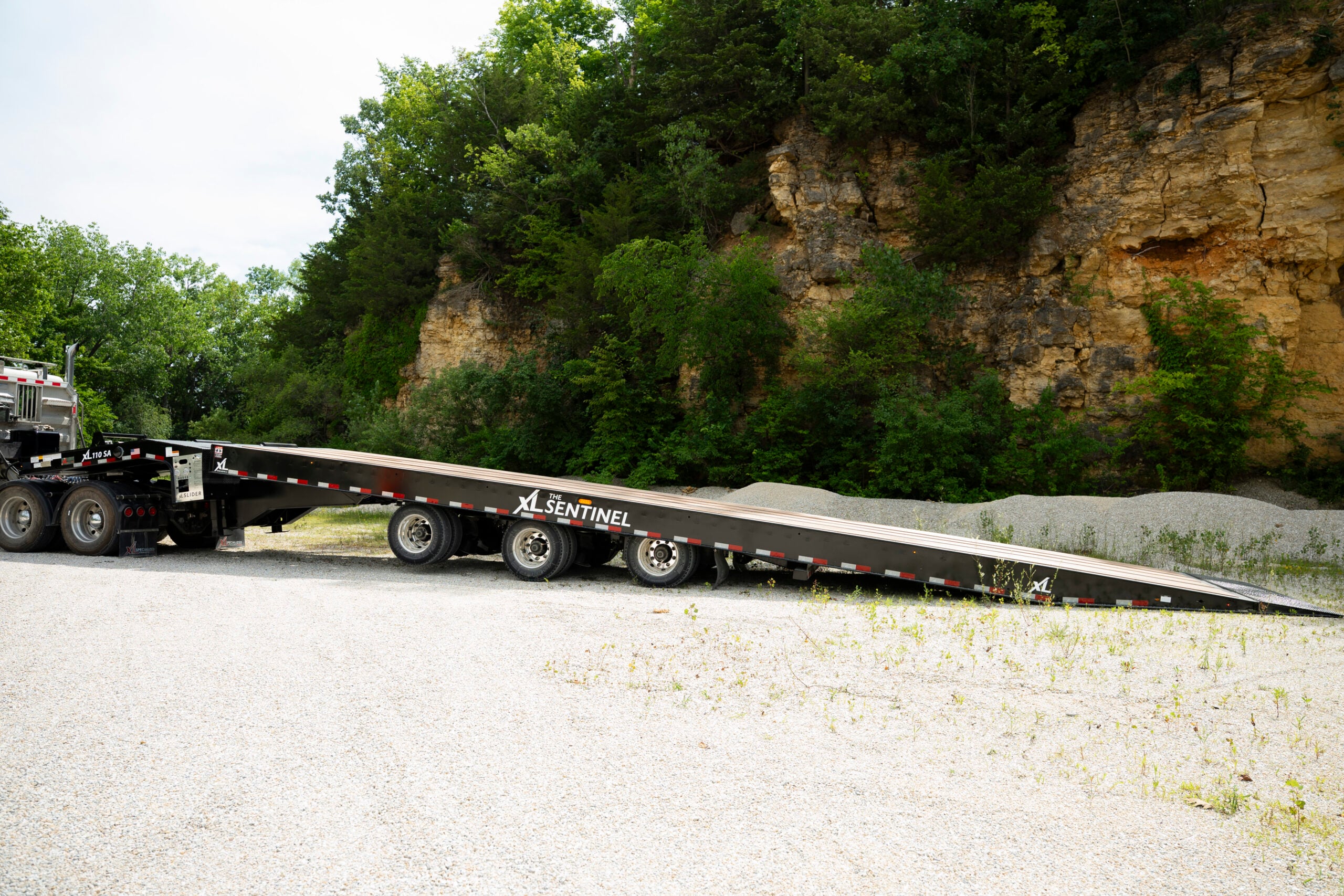

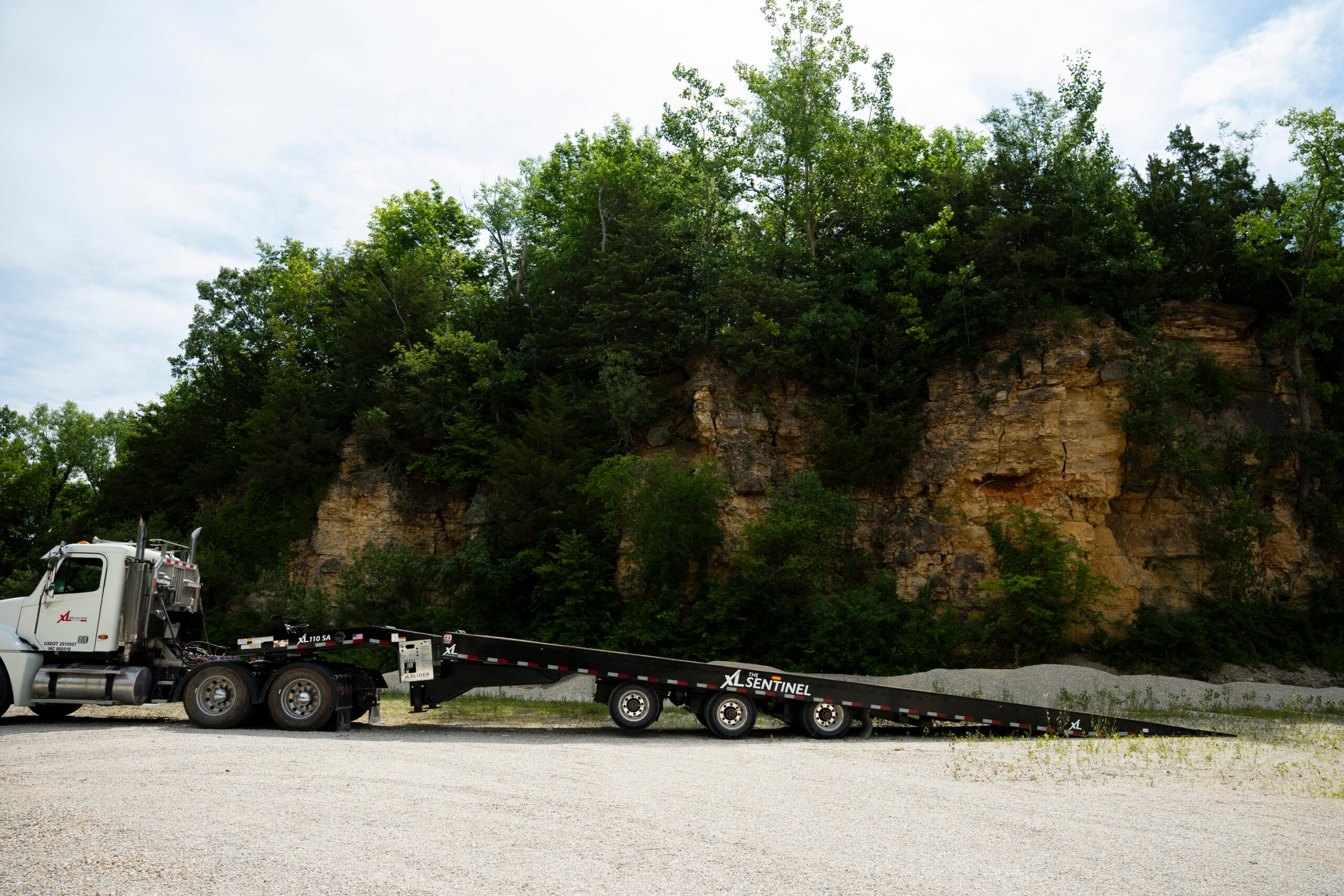

XL’s Slide Axle trailers feature a hydraulically powered axle assembly, which move the axles up enabling the trailer deck to become a ramp with a low load angle. The winch and roller system at the front combine with the easy to use ramp system to allow users to move hard-to-load equipment onto the robust deck.

Features

Available Models

Industries & Applications

Options

Trailer Gallery

Features

Low-Incline Load Angle

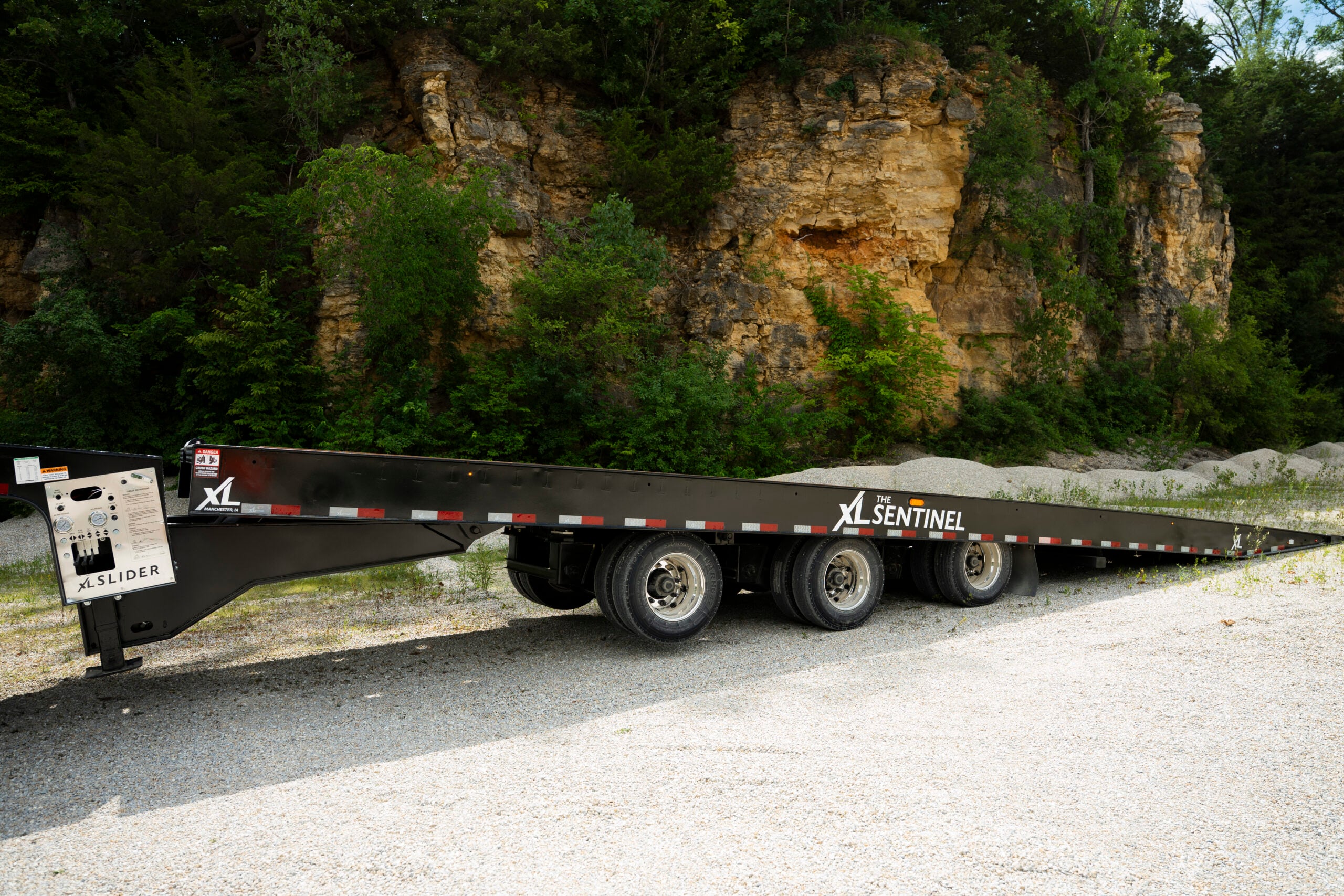

Hydraulic sliding axles create a 6 1/2 degree load angle to load the heaviest equipment
Dump angle of 17 degrees is ideal for unloading containers
Junior I-beams on 8-inch centers
Available in various lengths including a CA legal spec (51′) and 9′ or 10′ wide

Load Non-Functioning Equipment

Hydraulic winch and rollers for loading non-functioning equipment
20,000 lb hydraulic winch
Manual kickout with 100′ of cable
Energy chain protects air, electric and hydraulic lines

Greaseless Rollers

Recessed roller on the back of the gooseneck
Composite rollers do not need to be greased
Winch and rollers allow you to load non-functioning equipment

The XL Slide Axle helps users save time with the quick moving axle assembly. The front winch and neck roller pull up inoperable equipment while the i-beams on 8″ centers comprise an extremely strong main deck. Drop downs on the outside beams and center deck provide areas for chains to tie down. The hydraulic sliding axle assembly with traveling bumper provides under ride protection.

Featured Models

Sliding Axle Trailers

XL 80 Slide Axle

80,000 lbs Overall Capacity

50,000 lbs in 10' Concentrated Capacity

Available with three overall lengths: 48′, 51′ and 53′
Traveling axle design provides a 6 1/2 degree load angle
Wireless remote for controlling traveling axles and load/dump positions
Winch at the front and cable roller for loading down equipment
Greaseless rollers

Build your custom XL Slide Axle Trailer

Specialized Applications

Specialty trailer models designed for hauling distinctive loads

Construction

XL 110 Slide Axle

110,000 lbs Overall Capacity

70,000 lbs in 10' Concentrated Capacity

Available with three overall lengths: 48′, 51′ and 53′
Traveling axle design provides 6 1/2 degree load angle
Wireless remote for controlling traveling axles and load/dump positions
Winch at front and cable roller for loading down equipment
Greaseless rollers

Trailer Options

We offer a wide range of options so you can customize your trailer to best serve your unique needs.
