High-Capacity Detachable Gooseneck

A High-Capacity Detachable Gooseneck is a trailer with a detachable gooseneck that can transport over 120,000 pounds. These trailers are typically part of a multi-axle set up, which has other components to scale the weight of the load appropriately.

Available Models

Trailer Gallery

Features

Hauling Solutions for Your Heaviest Loads

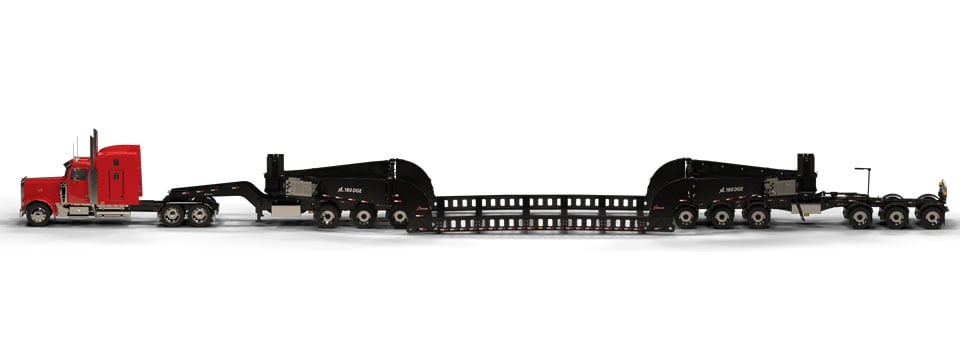

XL High-Capacity Detachable Gooseneck Multi-Axles are the ideal solution for loads over 120,000 pounds. The higher the capacity, the more axles that are required to scale the load. That is where the auxiliary components, such as Jeeps, Boosters, and Dollies, come into play.

Specs for Wherever the Road Takes You

XL’s multi-axles offer specs for all North America geographies and axle laws. The West Coast Pivot Boosters are a popular solution for the West Coast. Various axle spacing options accommodate regulations in other states and providences.

Designed for You, Built to Last

XL designs multi-axles with the driver in mind. Enjoy features like detachable wheel areas for adding additional decks, steerable axles, and specs unique to your needs. Have confidence in your trailer thanks to XL’s full five-year structural warranty and three-year paint warranty!

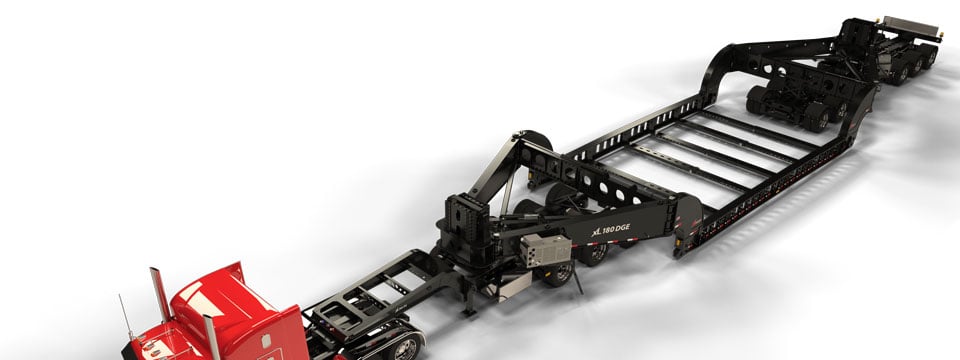

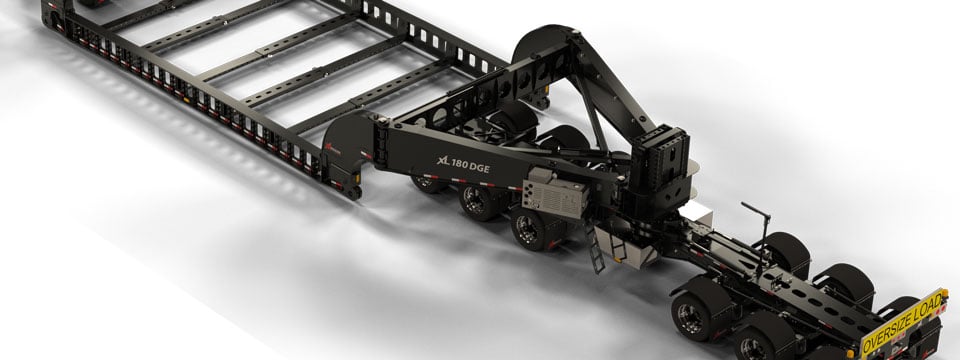

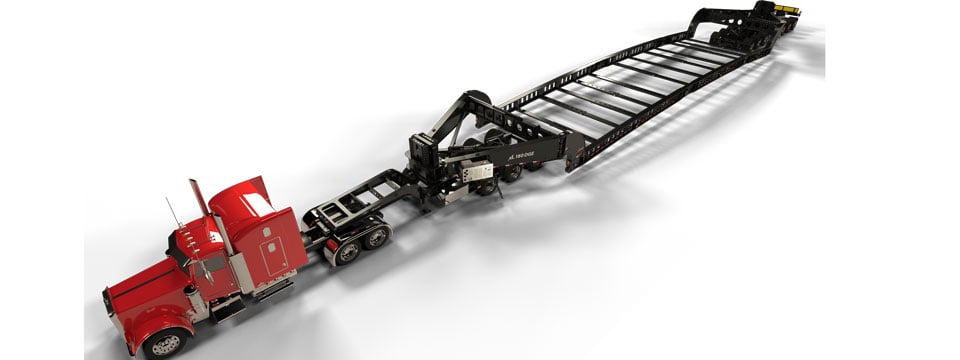

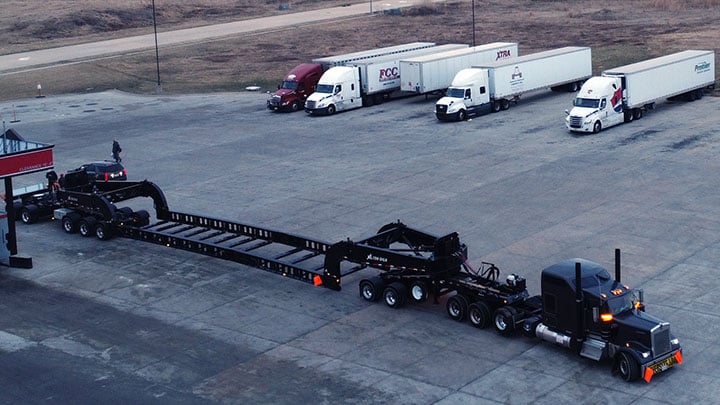

XL’s High-Capacity Detachable Goosenecks are available with hydraulic and mechanical goosenecks. The trailer is accompanied with other components like Jeeps and Booster to scale the larger loads, up to 200,000 pounds. XL’s high-capacity trailers offer robust main decks with many capacity and spec variations available. On all detachable goosenecks, the gooseneck detaches from the main deck, allowing operators to drive up the front of the main deck. The removable gooseneck is then reattached for transporting the load. The main deck of these units features front flip ramps or a tapered approach design.

Featured Models

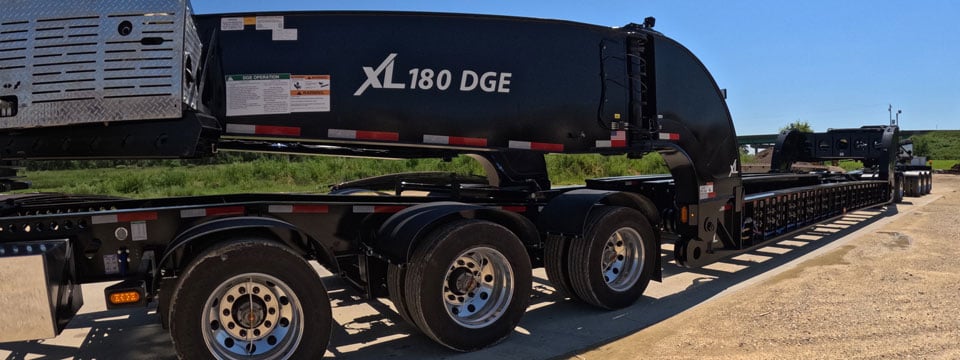

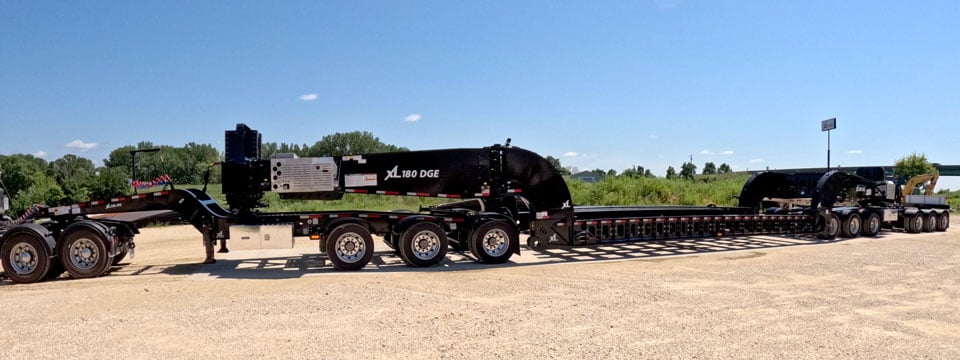

High-Capacity Hydraulic Detachable Gooseneck

Capacities of 130,000 pounds to 200,000 pounds
Uses hydraulics to make detaching and reattaching the neck a quicker process
Flip necks are a popular option for fitting the trailer over the front Jeep axles
9-foot wide, 10-foot wide or bigger for your largest loads
Detachable wheel area for adding deck sections
Low-Profile HDG goosenecks are available up to 170,000 pound capacity

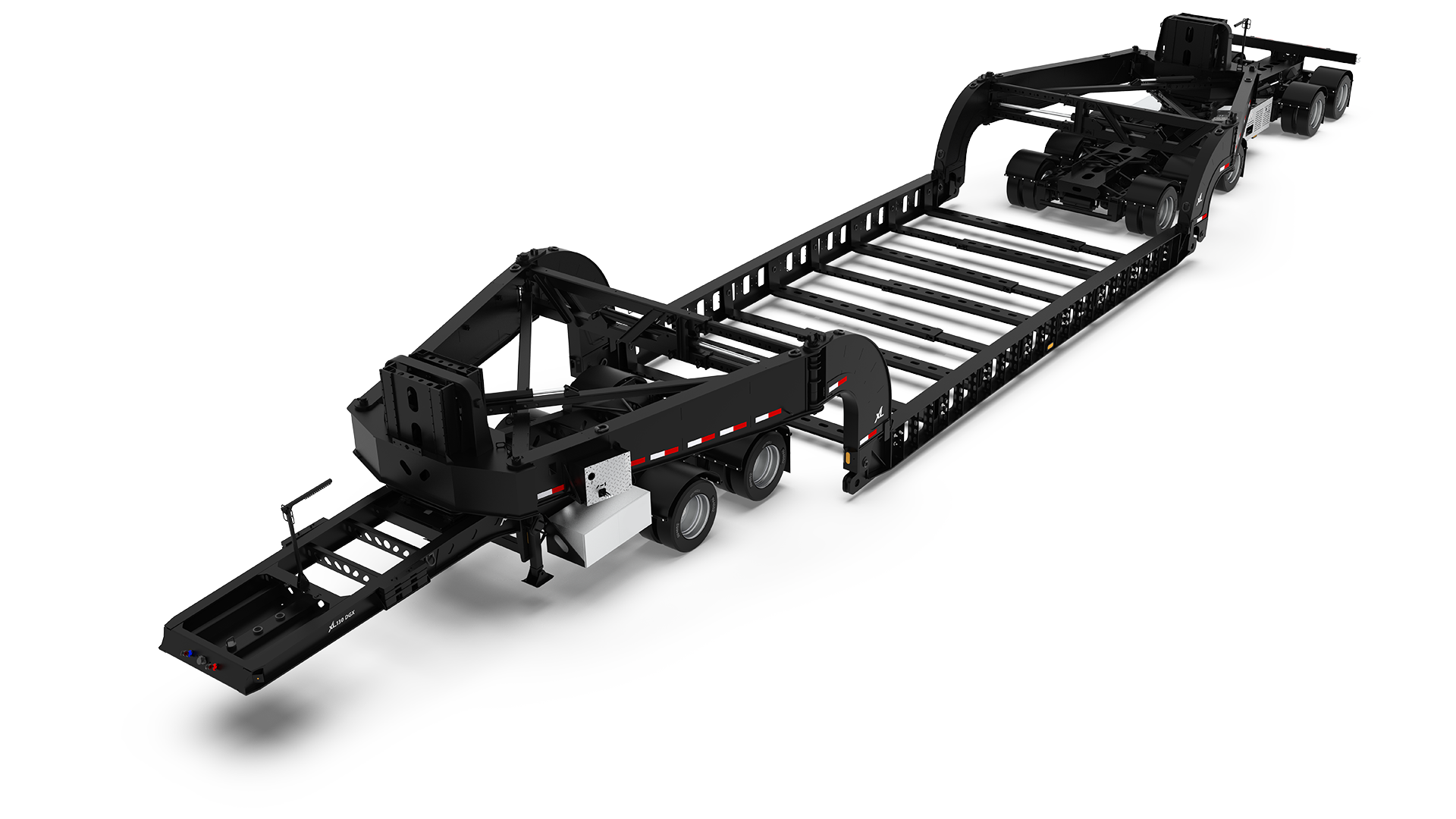

High-Capacity Mechanical Detachable Gooseneck

Capacities of 130,000 pounds to 200,000 pounds
Mechanical detachable gooseneck offers weight savings over hydraulic
Flip necks are a popular option for fitting the trailer over the front Jeep axles
9-foot wide, 10-foot wide or bigger for your largest loads
Detachable wheel area for adding deck sections

Power Booster

Uses hydraulic pressure, accompanied by a nitrogen accumulator, to transfer weight from the trailer
Lift the rear axles to get over obstacles
Customer-friendly solution to scale your loads

East Coast Booster

An East Coast Booster is any model using a rigid Spreader Bar
The spreader bar and additional axles can be sold as separate pieces or built as one-piece
Available in one, two and three-axle designs
XL boosters and spreader bars are designated as 22 for one-axle, 42 for two-axle and 60 for three-axle
Boosters add axles to help scale larger loads; they do not add to the capacity of the trailer

West Coast Booster

A West Coast Booster is a Pivot Booster which self-equalizes the weight on the trailer and the booster
Available in one, two and three-axle designs
Booster axles help manipulate weight transfer to scale larger loads, they do not add to the capacity of the trailer

Jeeps

Jeeps fit between the truck and the trailer to help scale loads or used separately for specialized bunk work with Dollies
Available in one, two and three-axle models
A one-axle Jeep is also referred to as a “Joe Dog”

Build your custom High-Capacity Detachable Gooseneck Trailer

Trailer Options

We offer a wide range of options so you can customize your trailer to best serve your unique needs.
