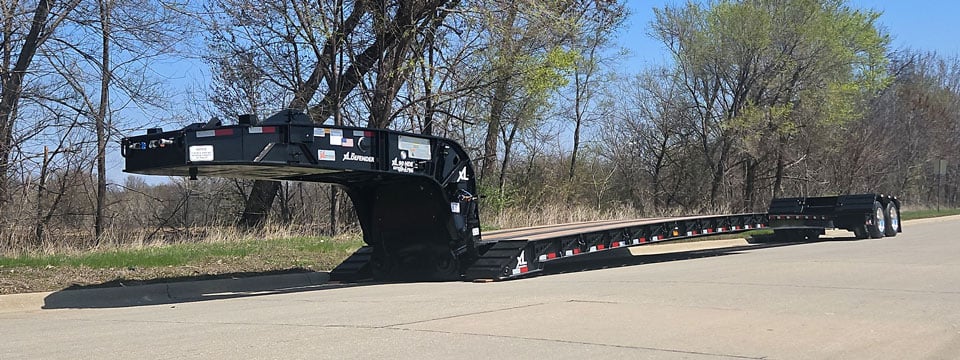

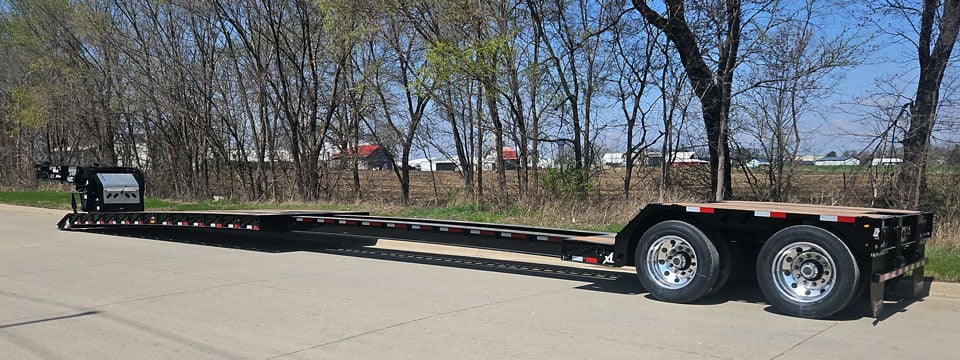

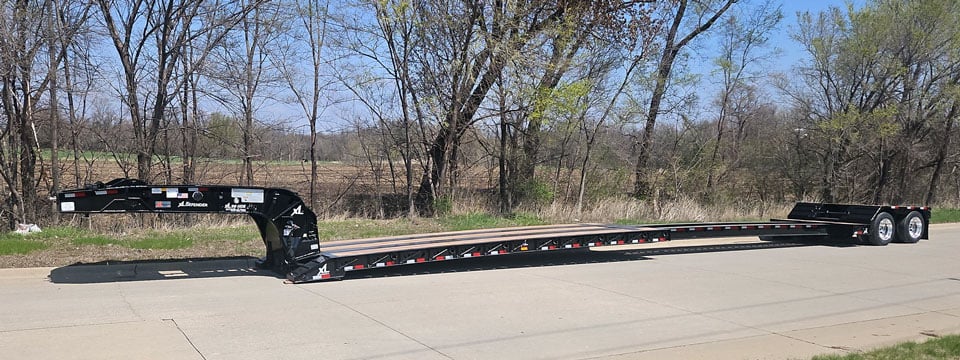

| Model | XL 70 HDE | XL 80 HDE | XL 90 HDE | XL 100 HDE | XL 110 HDE | XL 120 HDE | XL 130 HDE | XL 140 HDE |
|---|---|---|---|---|---|---|---|---|
| Capacity | 70,000 lbs | 80,000 lbs | 90,000 lbs | 100,000 bs | 110,000 lbs | 120,000 lbs | 130,000 lbs | 140,000 lbs |
| Concentrated Capacity | 50,000 lbs in 10' closed | 60,000 lbs in 10' | 70,000 lbs in 10' | 80,000 lbs in 10' | 90,000 lbs in 10' | 100,000 lbs in 10' closed | 110,000 lbs in 10' closed | 120,000 lbs in 10' closed |

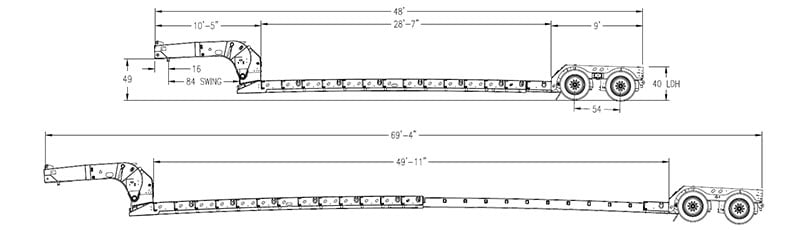

| Gooseneck Length | 10' 5" | 10' 5" | 10' 5" | 10' 5" | 10' 5" | 12' 5" | 12' 5" | 13' 8" |
| Standard Main Deck Length Range | 28' 7" - 49' 11" | 28' 7" - 49' 11" | 28' 7" - 49' 11" | 28' 7" - 49' 11" | 24' 1" - 40' 11" | 27' 1" - 46' 11" | 27' 1" - 46' 11" | 24' 1" - 40' 11" |
| Loaded Deck Height | 20" | 20" | 20" | 20" | 24" | 24" | 24" | 24" |
| Ground Clearance | 6" | 6" | 6" | 6" | 6" | 6" | 6" | 6" |
| Standard Axles | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 |
| Standard OAL | 48' Closed | 48' Closed | 48' Closed | 48' Closed | 48' Closed | 53' Closed | 53' Closed | 51' 3" Closed |
| Wheel Area | Wood-covered | Wood-covered | Wood-covered | Wood-covered | Wood-covered | Wood-covered | Wood-covered | Wood-covered |
We offer a wide range of options so you can customize your trailer to best serve your unique needs.
Aluminum Durabright Wheels are a light weight option. These rims keep their shine throughout their lifetime. They never need to be polished.
Aluminum Milled Wheels provide weight savings, as they are 27 lb lighter than standard steel.
Aluminum Polished Wheels offer a lighter-weight option along with a high-quality shine.
The cam cover option is the ideal way to protect your cam, and stay away from maintenance costs.
Centrifuge drums are a lighter weight option versus standard drums.
XL Dust Shields protect tires from dirt and debris as they travel down the road.
The Hubometer is a handy option to gauge milage on your trailer.
PSI Tire Inflation prevents your tires from deflating. They automatically keep the tire inflated at a certian PSI.
High-quality Steel Wheels come standard on XL trailers.
No description from the current site.
Aluminum decking is a lighter weight option.
XL’s standard decking is built with Apitong. Apitong is stronger and more resilient than Oak so your deck will hold up to continuous wear.
This option allows you to place the 13HP Honda Unit on the top of the neck. It features dual hydraulics.
Aluminum fenders on the side of the gooseneck protect the neck from debris.
Store your documents in a convenient place, with a registration holder on the gooseneck.
Steel fenders on the side of the gooseneck protect the neck from debris.
The toolbox in the rear of the gooseneck has a steel door. The door protects the power unit or other materials stored in the toolbox.
The 4 Way Plug is useful for hooking up extra lights.
Amber Strobe Lights make your trailer visible at night, adding safety when hauling.
Are you looking to increase the safety of your trailer through additional lights? Flex Beacon lights offer a solution.
XL offers a D.O.T.-approved 12V sealed grote harness.
The 2 Tail Light Package is the standard on XL products. XL tail lights feature rubber-mounted LED lights.
XL’s 3rd Tail Light Package offers additional lighting than the standard 2-light package. XL features rubber-mounted LED lights.
XL’s 4th Tail Light Package offers additional lighting than the standard 2-light package. XL features rubber-mounted LED lights.
The standard Mid-turn Lights meet D.O.T. requirements.
Pull Out Lights provide additional safety.
Swingout Lights provide additional safety.
Consider an open center deck for weight savings.
Choosing a covered center deck adds even more versatility. The 1-3/8” Apitong decking is stronger and more resilient than Oak so your deck will hold up to continuous wear.
The 24-inch loading platform is positionable on any part of the main beam. It is put into place with a forklift.
Consider an open center deck for weight savings.
2″ x 10″ Oak outrigger planks fit on top of outriggers to provide more surface area for loads to sit on.
A 24-inch platform can be placed at any point on the main beam. It rolls into place.
A storage compartment in the front of the main deck is a popular option. Keep your chains, straps, and other materials in this handy compartment.
Aluminum Pull-Out Ramps are used for loading equipment onto outriggers.
XL’s Aluminum Pullout Outriggers are a lightweight solution for hauling wide equipment. They feature drain holes that keep your trailer free from dirt and debris and allow water to drain which prevents rust and deterioration.
Double Outriggers at the front of the trailer enable your trailer to handle the pressure of loading heavy equipment. The picture shows prep for a double outrigger.
XL offers many tie-down options to fit your preferences and needs. Flat Back Outriggers are one option.
Heavy Duty Swingout Removable Outriggers allow you to load wider, heavier equipment.
Outrigger Plank holddowns provide a safe place to carry outrigger plank.
Steel pullout outriggers give you the ability to haul wider equipment.
These standard outriggers swing out for hauling wider loads.
Black paint is one of XL’s standard color options.
XL offers a wide range of custom paint options, both metallic and non-metallic colors. Pick out your own color or match your trailer to your truck.
IH Red is one of XL’s standard paint color options.
New Cat Yellow is one of XL’s standard paint color options.
Front flip ramps create a smoother transition when loading equipment onto the main deck. The ramps flip up when not needed.
Add efficiency to your trailer with Aluminum Portable Ramps.
Hydraulic Bifold Ramps efficiently load heavy equipment such as a paver. With hydraulic controls, it is easy to fold and unfold these ramps.
The standard Mechanical Ramp is used for loading onto mechanical trailers.
Spring Assisted Ramps are a popular option for taller trailers, to provide an efficient solution for loading onto a tall deck.
The battery backup includes a 4-way plug for a Flip Axle. A battery backup unit enables drivers to keep their lights on when the truck is unhooked, adding safety and visibility.
A covered boom trough has a bolt-on bottom plate, which protects the components underneath.
Heavy-duty wheel covers are removable. They are rated for 25,000 lbs each for a static load. They are removable and raised, and feature traction aids on the 32-degree slope for loading on the rear bridge.
Medium-duty wheel covers are rated for 25,000 lbs each during loading. They are removable, flush, and feature traction aids on the 32-degree slope for loading on the rear bridge.
The Wide Load Signs increases safety by alerting others of the trailers’ load.
The Oversize Load Signs increase safety by alerting others of the trailers’ load.
Wide Turn Signs increase safety by alerting others on the road of possible wide turns.
The Air Weigh Scale digitally reads the loaded weight on each axle, making accurate loading more efficient.
Double donuts allow for two different deck heights, making your trailer able to haul with increased versatility.
The Liquid Filled Air Gauge gives approximate weight on all axles, making it easier to load accurately and safely.
XL offers many tie-down options to fit your preferences and needs. The Bent D-Rings are the standard.
XL offers many tie-down options to fit your preferences and needs. Chain slots are one option.
Drop Down D-rings are out of the way when you don’t need them, and easily accessible when you do.
XL offers many tie-down options to fit your preferences and needs. The Gerome Hook fits in the deck until needed, at which time it can be pulled up.
XL offers many tie-down options to fit your preferences and needs. Pan-Style D-Rings are one option.
XL offers many tie-down options to fit your preferences and needs. Stake pockets are a popular option.
XL offers many tie-down options to fit your preferences and needs. Stake Pockets with Rub Rails provides an option for strap tie-downs.
Winches are useful for strapping down loads.
